Angular tightening control gauge

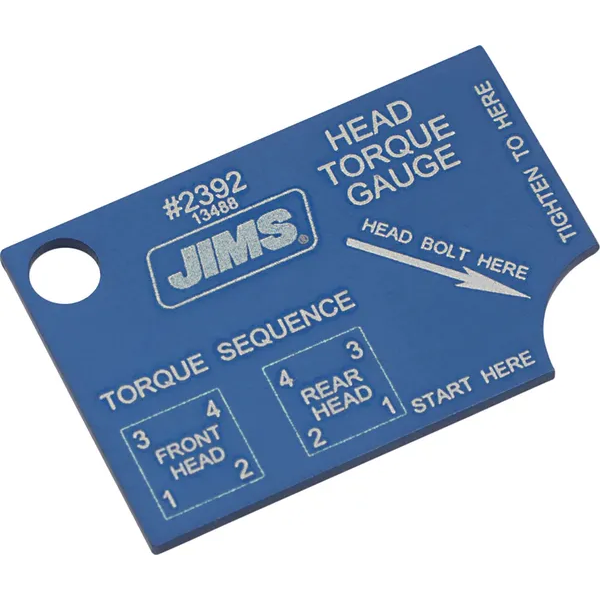

The JIMS Angular tightening control gauge head bolt torque gauge is a professional measuring instrument for checking and controlling the angular tightening of cylinder head bolts on Harley-Davidson engines. This precision tool ensures compliance with manufacturer specifications, which is essential for engine sealing and reliability.
Tightening cylinder head bolts using the angle + torque method has become standard on modern Harley-Davidson engines. This technique guarantees optimal and uniform tension, preventing compression leaks, cylinder head deformation, and bolt breakage. The JIMS gauge allows precise control of the angle of rotation during final tightening.
Technical characteristics:
- Precise measurement of tightening angle
- Control of compliance with manufacturer specifications
- Prevents over-tightening and under-tightening
- Easy and precise reading
- Robust and durable construction
- Essential for professional cylinder head assemblies
Applications:
- Assembly and reassembly of cylinder heads
- Big Twin, Twin Cam, Milwaukee-Eight engine overhauls
- Revisions according to manufacturer specifications
- Quality control after intervention
Advantages:
- Guarantees engine sealing and reliability
- Avoids deformations and leaks
- Strict compliance with Harley-Davidson procedures
JIMS professional quality for precise engine assemblies that meet manufacturer standards.
