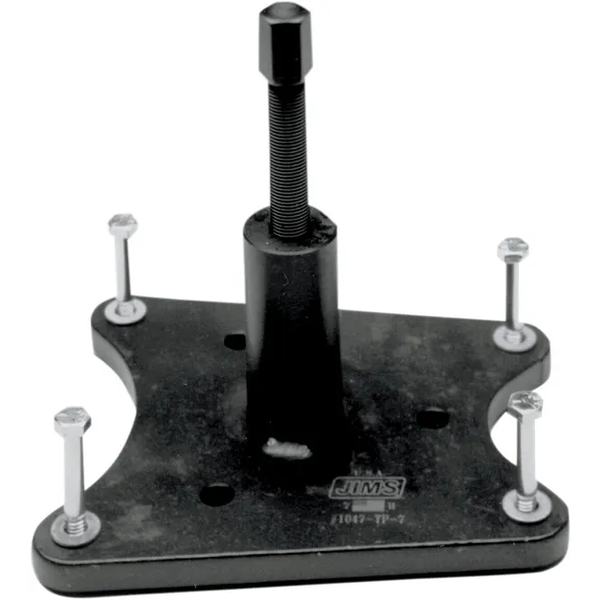

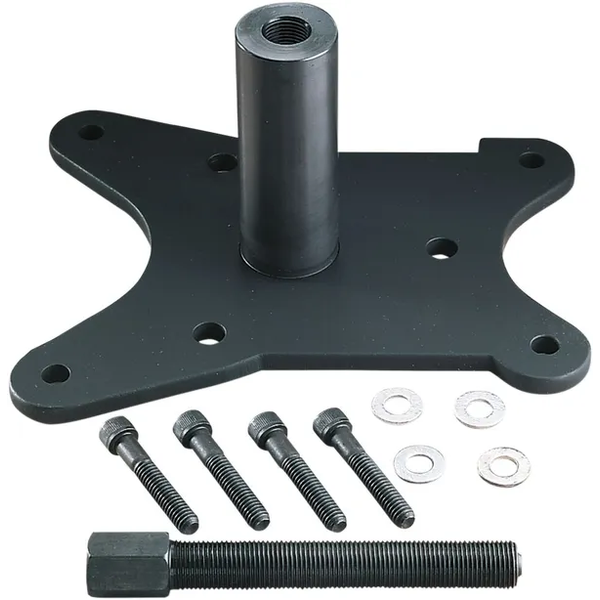

The JIMS Sportster Crankcase Separator Tool Crankshaft Assembly Extraction Tool is the essential professional accessory for any work on the lower engine Crankshaft Assembly Extraction Tool of your XL or Buell. Designed specifically for Evolution Sportster crankcases, this tool allows for clean and safe separation, facilitating access to the crankshaft, bearings, and primary drive.
Sportster and Buell engines (excluding 1125R) share a compact architecture that requires specialized tooling. Forcing separation with Crankshaft Assembly Extraction Tool generic tools can crack the crankcases, damage the joint surfaces Crankshaft Assembly Extraction Tool, or deform the bearing housings Crankshaft Assembly Extraction Tool. The JIMS tool guarantees uniform pressure and risk-free disassembly.
Compatibilities:
- Harley-Davidson Sportster Evolution (1957-2020, all XL models)
- Buell with Sportster engine (1994-2009, excluding 1125R)
- 883, 1200, XR1200, all Sportster Evolution
Whether you are performing a complete engine overhaul, a crankshaft replacement Crankshaft Assembly Extraction Tool, a performance upgrade, or a restoration, this JIMS tool is an essential investment. Guaranteed precision and protection for your Sportster work.
